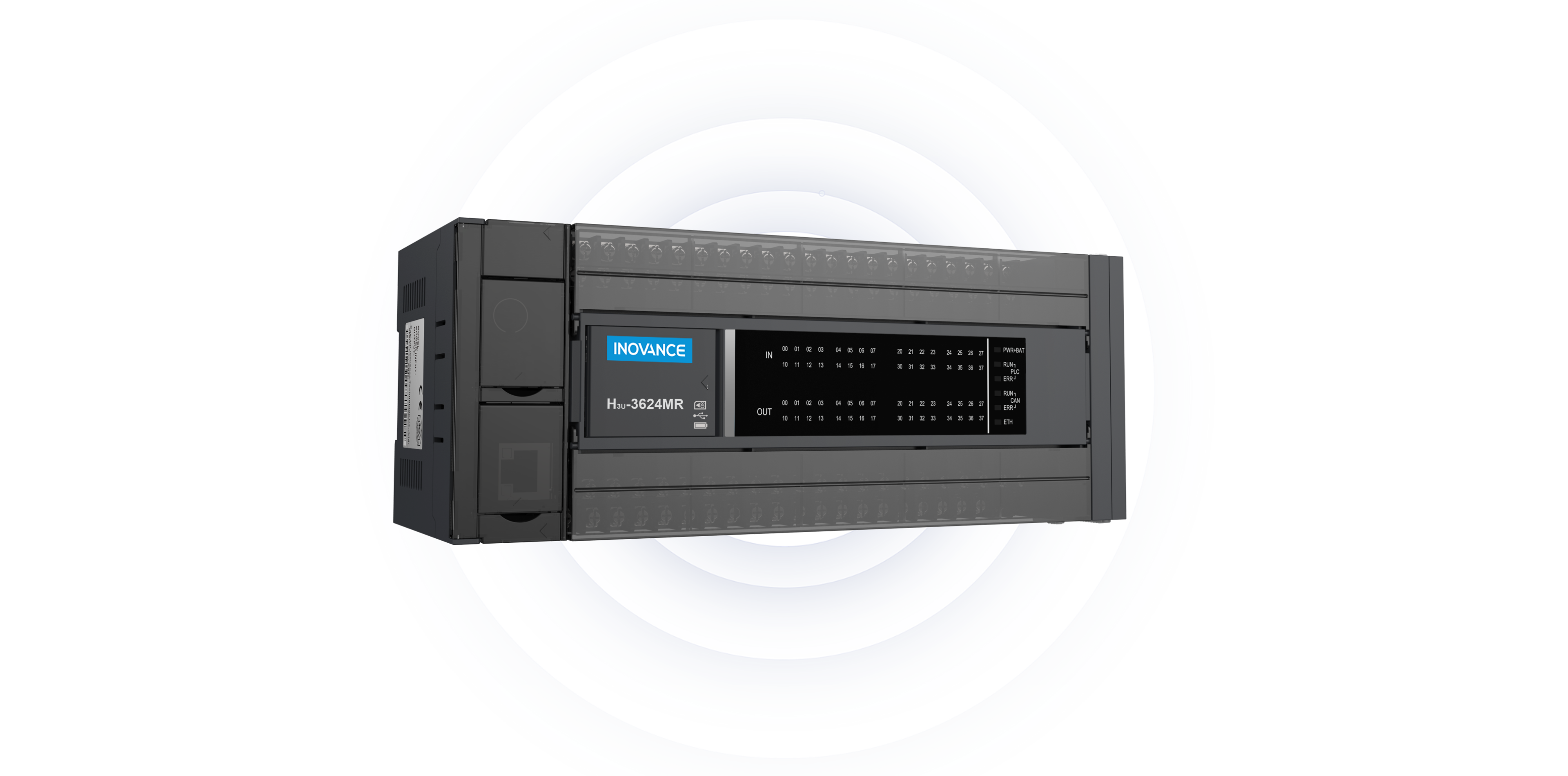

H3U Series Box Type Standard PLC

The H3U series represents the third generation of high-performance small PLCs from Inovance. It adopts the innovative PLC architecture to continuously improve performance while offering more diversified functions. Stabilization and reliability of the H3U series is ensured with a comprehensive and rigorous software testing process.

Consult Now

Product Features

High Performance, Large Capacity

Easily meets increasingly complex process demands

Rich Motion Control Features

Ensures precise and flawless equipment motion

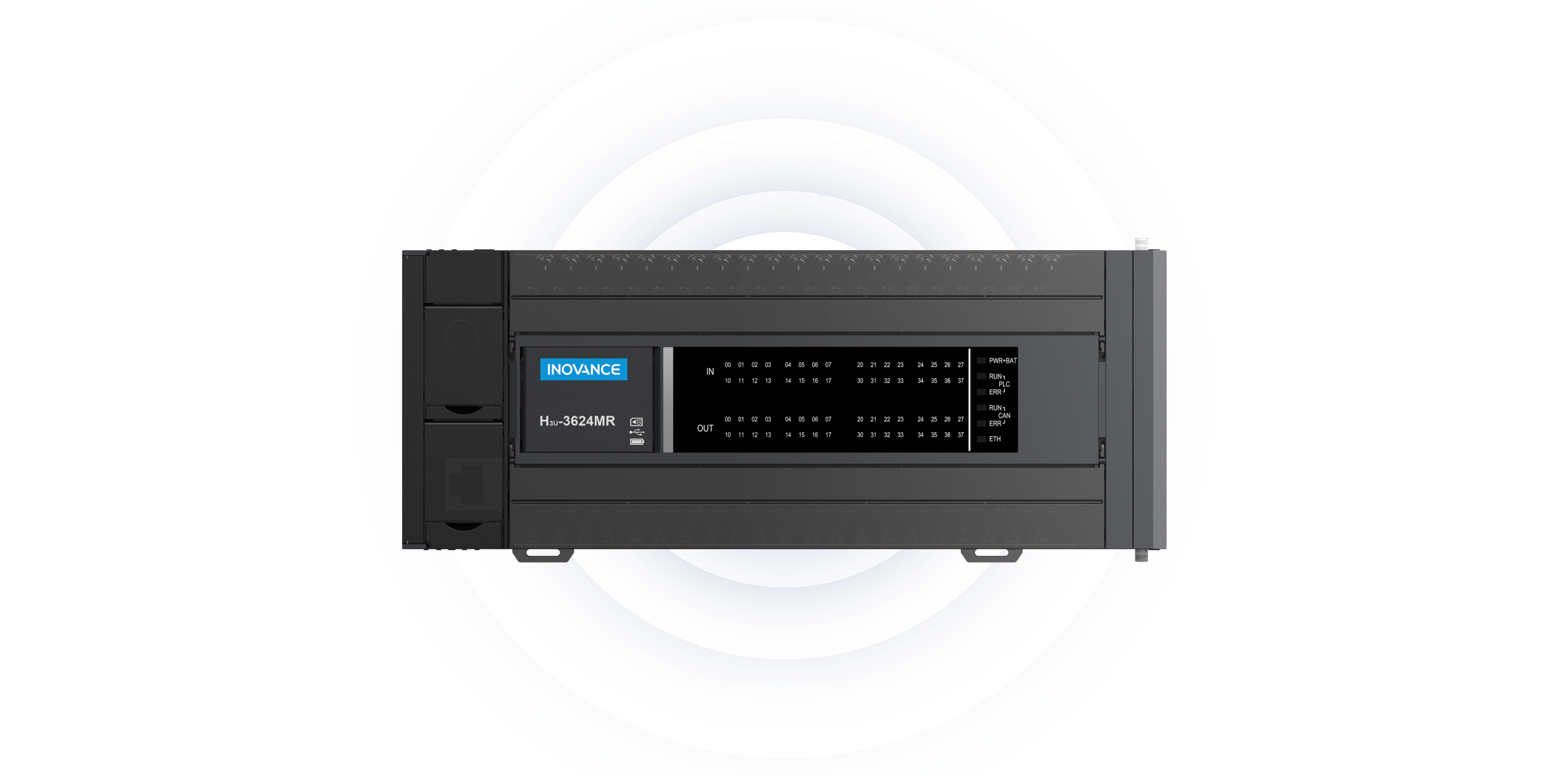

H3U Series

Flexible Networking Options

Supports Ethernet, CANopen, and CANlink for seamless connection of information technology and automation

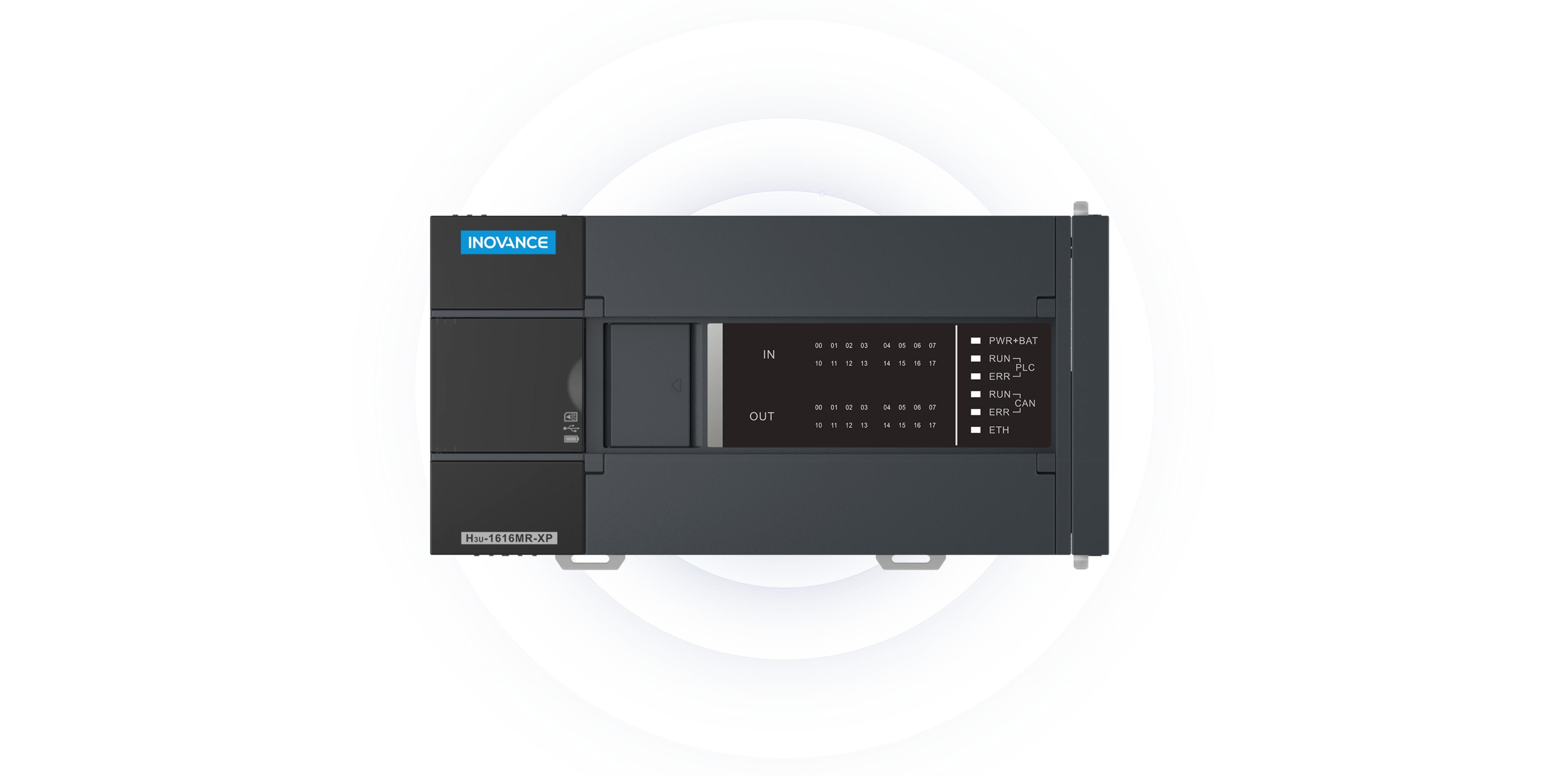

H3U Series

User-Friendly Software

Simplifies application processes with the intuitive graphical interface

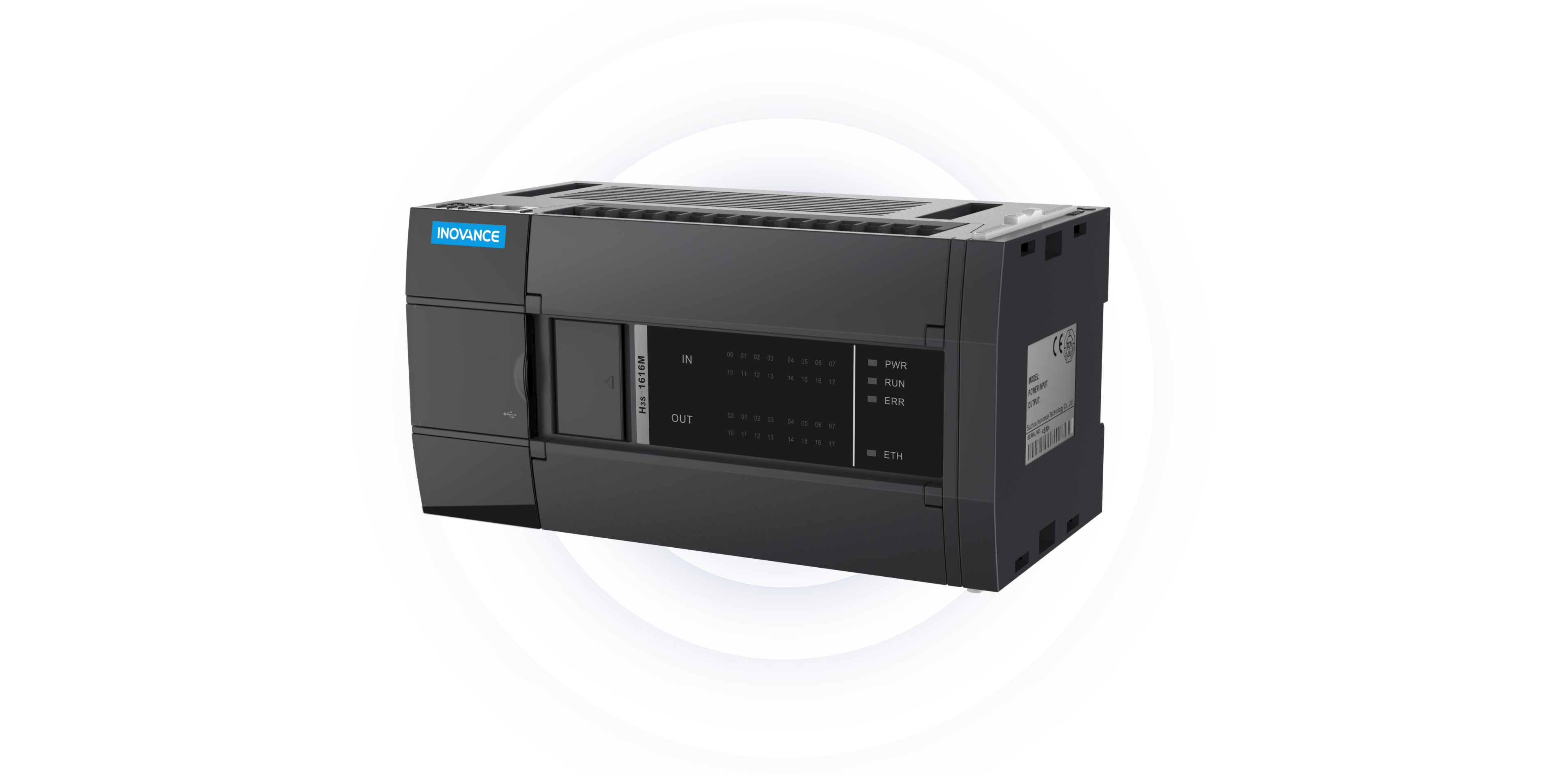

H3U Series

Small-Scale Automation Equipment

Primarily used in line automation, woodworking machinery, glass machinery, handling, loading/unloading, and customized electronic manufacturing
64 k-steps program storage and 48 k-words data storage
Two serial ports for MODBUS and monitoring; one CAN port for CANlink and CANopen
One 100 Mbps Ethernet port for MODBUS TCP/IP and free protocols

Rich Control Features

5-channel 200 kHz pulse output and abundant positioning control instructions, enabling S-curve acceleration/deceleration, cam synchronous control, and 2-axis linear and circular interpolation

Phase Pulse Counting, Interrupt, and Pulse Capture

8-channel 200 kHz high-speed input, facilitating single-phase and A/B phase pulse counting, with support for interrupt and pulse capture
Programmable with USB and Ethernet interfaces

Technical Parameters

General specifications

Processor -

Bit operation processing time 100.00 ns

Word operation processing time -

Binary floating point operation processing time 4 μs

Power supply 220 V/24 V power supply supported (Terminal block connected reversely, 24V+, 0V-)

User program storage space 64 k steps

User data storage space 48 k words

Retentive space upon power failure 40 k words

IP rating IP20

Operating/Storage temperature -5℃ to 55℃/-25℃ to 75℃

Number of expansion modules 8

Number of IO channels

Output type Transistor output

Common DI 16

High-speed DI 8 (200K)

Common DO 11

High-speed DO 5 (200K)

Motion control

Number of axes 16

Local pulse axis 5 channels

Control cycle -

Cam/gear -

Interpolation 2-axis arc, straight line

Local encoder axis -

Dimensions and weight

Dimensions (W x H x D) 170 mm × 90 mm × 90 mm

Weight Approx. 700 g

Control method

Programming language Ladder diagram, instruction list, and sequential function chart (SFC)

Software platform AutoShop

Terminal type

Terminal -

RS232 -

RS485 ✔

RJ45 ✔

RS422 ✔

Mini USB -

SD card -

Type-C -

USB ✔

Communication mode

Modbus TCP 31 slaves supported when used as a master; 31 masters supported when used as a slave

TCP/IP Max. connections: 15

UDP -

OPCUA -

EtherNet/IP -

EtherCAT -

CANopen ✔

CANlink ✔

Modbus RTU ✔

Certification

CE ✔

UL -

UKCA -
