HMI IT7000 Series
Product Features

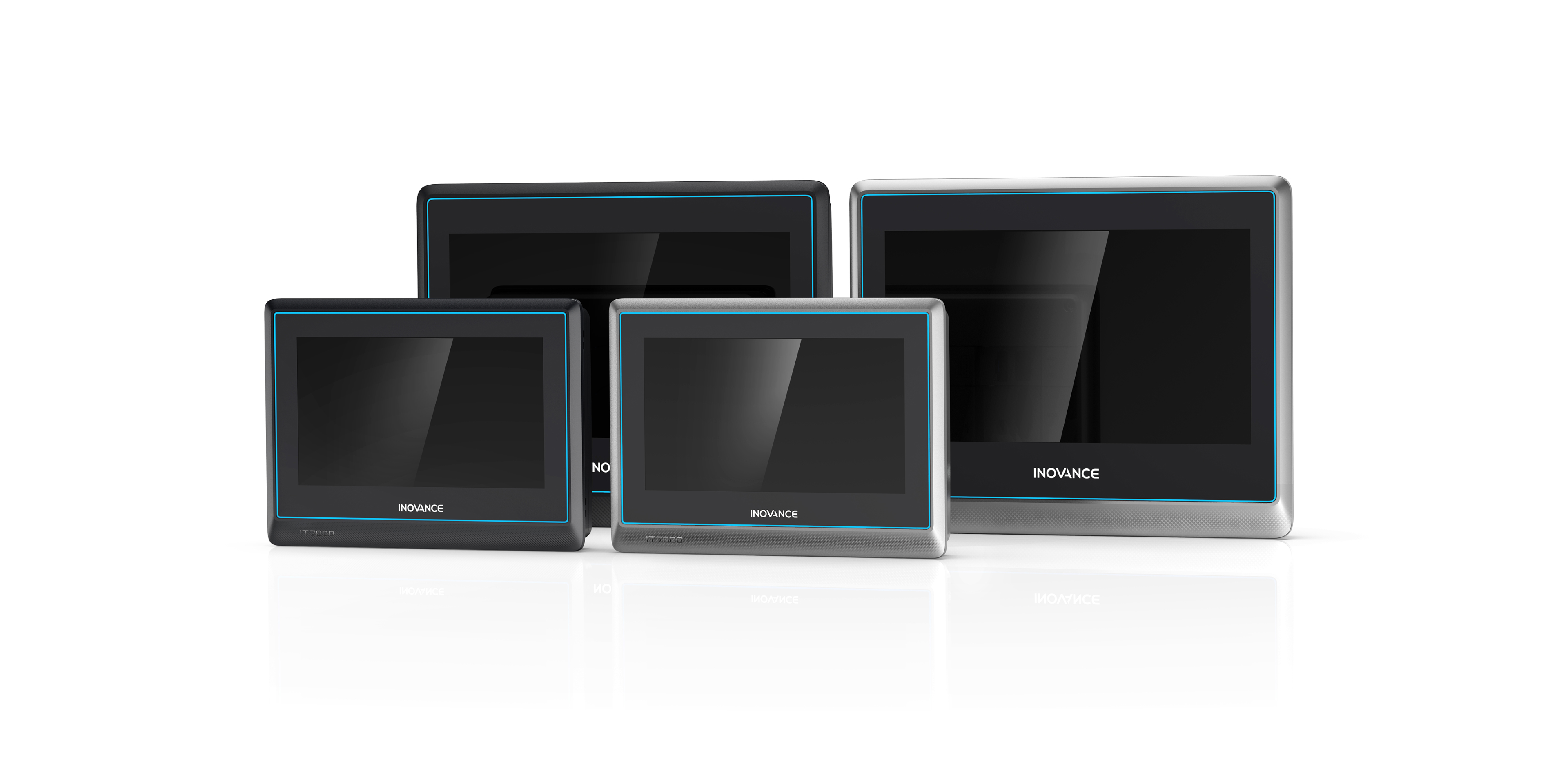

The IT7000 series represents the next generation of touchscreens
developed in line with the industrial HMI development trend. This series
marks a significant leap in display quality. Compared with traditional
HMIs, it embraces more communication protocols, integrates richer
features, and delivers faster data processing and response.
Enriched Features, Stable Operation

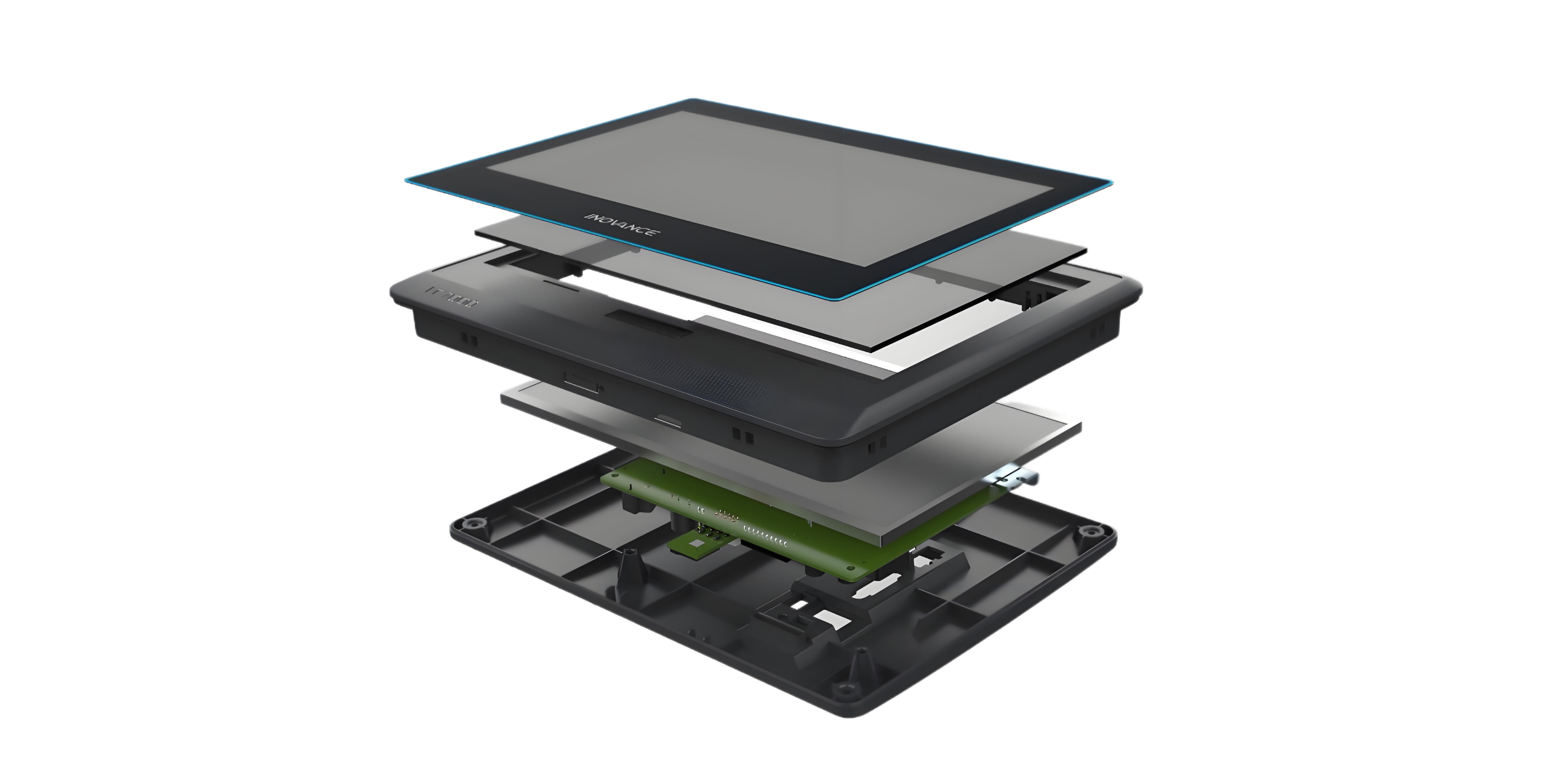

The IT7000 series next-generation touchscreen elevates software, hardware, and structures from its predecessor, the IT6000 series.

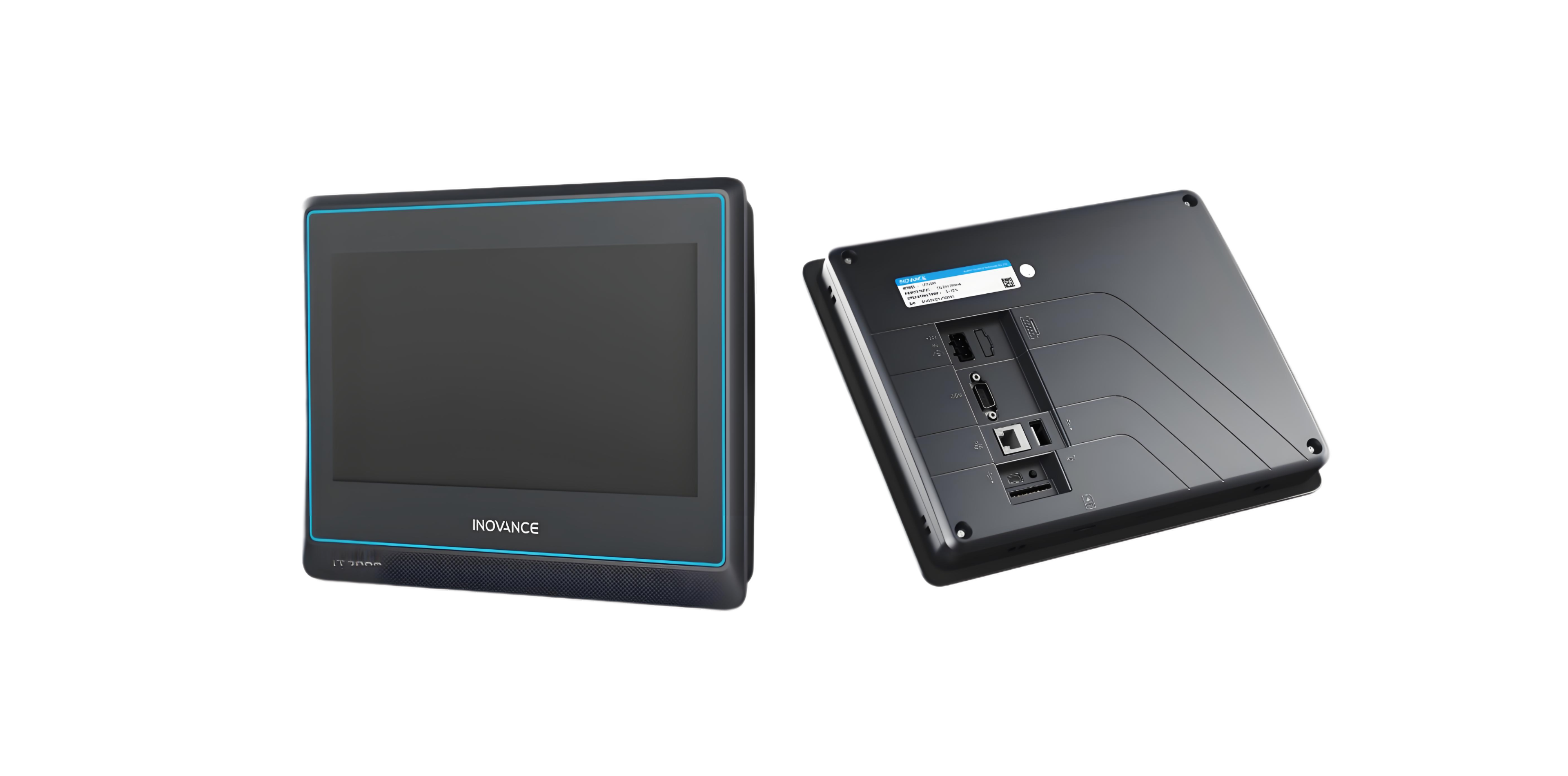

Flexible Networking
Facilitates networking through Ethernet and serial ports
Supports various communication protocols from leading manufacturers including Siemens, Omron, Mitsubishi, Panasonic, Yaskawa, Keyence, Delta, Fatek, and Xinje
Convenient Operation,Efficient Editing
Introduces drag-and-drop functionality to simplify control generation and variable association
Supports batch creation, import, and export in spreadsheets
Sophisticated Features,Rich Control Types
Provides rich system functions and JavaScript scripting capabilities
Meets common needs while allowing customization of control
IoT Gateway
Enables online data monitoring and remote commissioning, screen projection, and upgrade
Technical Parameters

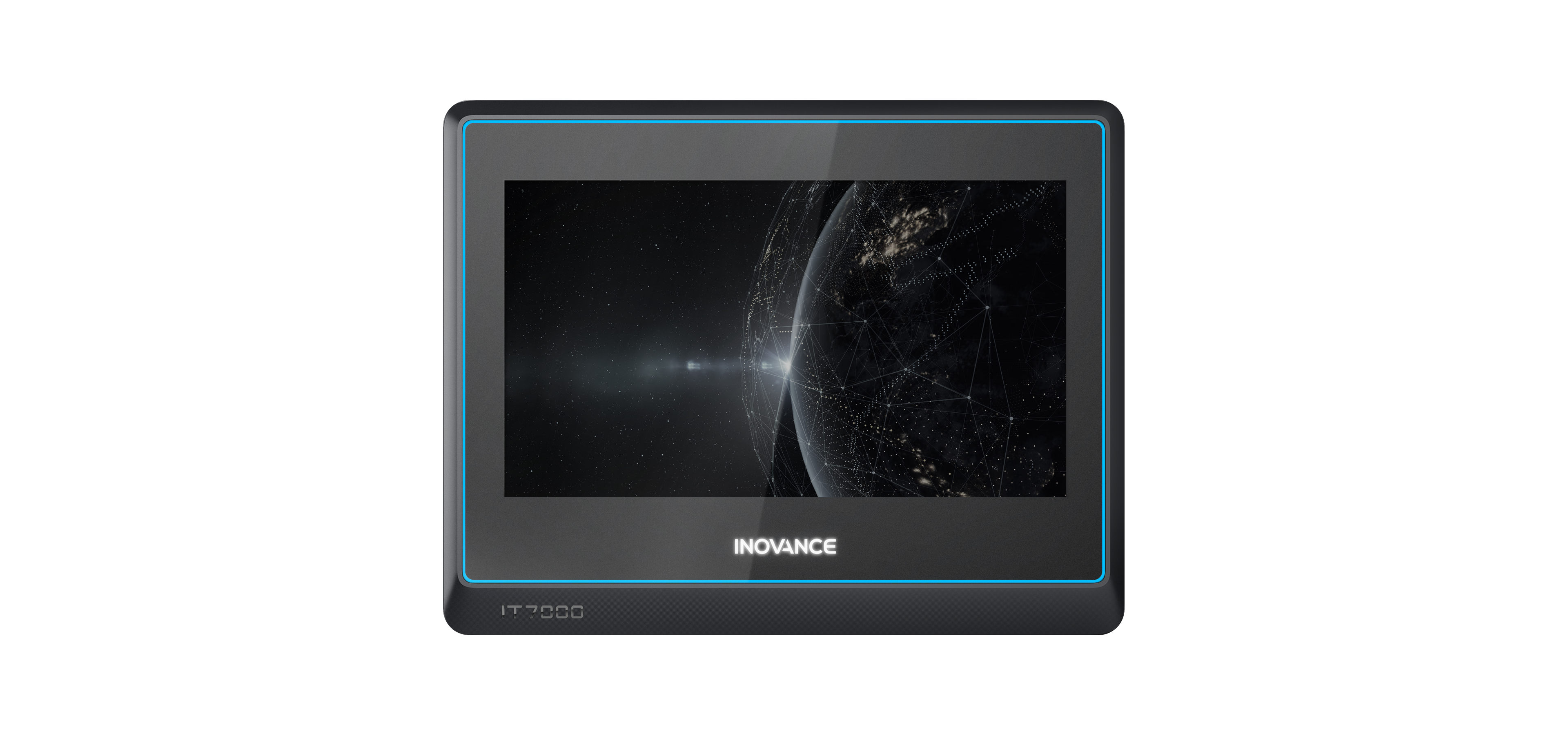

Display Specifications
Display Dimension 15"
resolution 1024x768
Brightness 300
Display color 24-bit true color
Backlight LED
Backlight service lift 50000hrs
General Specifications
CPU Cortex A8 1 GHz
DRAM 256MB DDR3
Flash 256M
RTC Supported
Touchscreen type 4-wire resistive
Input voltage 24 VDC±20%
Rated Input Current 800 mA
Operating temperature 0℃ to 55℃
IP rating of the panel Front panel: IP65; Rear cover: IP20
Terminal type
Serial Port COM1 (RS422/RS485) COM2 (RS232) COM3 (RS485)
Ethernet port One 10M/100M adaptive RJ45 Ethernet port
mini usb 1
USB 1
Dimensions and weight
Dimensions (mm) 367.8 x 294.8 x 53
Cut-out dimensions (mm) 352*279
Certification
UL Supported
CE Supported
